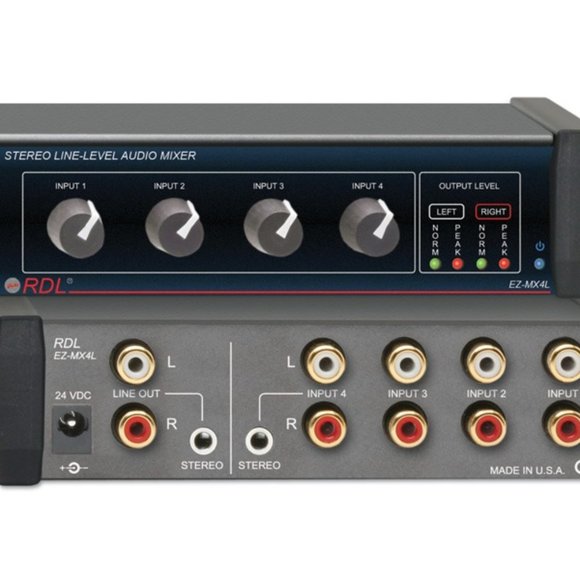

EZ-MX4L Stereo Line-Level Audio Mixer - 4X1

EZ-MX4L Stereo Line-Level Audio Mixer - 4X1 Features: · Four Channel Line-Level Audio Mixer · Three Unbalanced Line Inputs on RCA Jacks · One Line Input on MINI or RCA Jacks · Unbalanced Output on MINI or RCA Jacks · Dual-LED VU Meter for Each Channel Advantages: · Headroom Accomodates High Input Level · Exceptional Headroom for an Unbalanced Mixer · Gold Plated RCA Input and Output Jacks · Audio VU Metering Facilitates Adjustment Description: · The EZ-MX4L is a stereo audio mixer with four line inputs · All line inputs connect through RCA jacks; one also includes a MINI-jack input. · Left and right channel LED VU metering facilitates easy level adjustment · The line output is available on stereo RCA jacks or on a MINI-jack · The EX-MX4L is used in houses or worship, restaurants, clubs, meeting rooms, studios, home component systems and commercial sound systems PDF Manual: · www.rdlnet.com/downloads/manuals/EZ-MX4L_INSTALLATION_MANUAL.pdf Specifications: Inputs (5): > 10 kΩ, -10 dBV nominal on RCA jacks (4) or Mini Jack (1), +20 dBV max. Level controls (4): Off to 12 dB gain Outputs (2): -10 dBV nominal on RCA jacks (1) or Mini jack (1, stereo), +16 dBV max. Frequency Response: 10 Hz to 20 kHz (±0.01 dB, line) THD+N: < 0.05% Crosstalk: < -72 dB (1 kHz) Metering: Dual-LED VU Meter for Left and Right, calibrated to -10 dBV output Noise: < -85 dB (be
