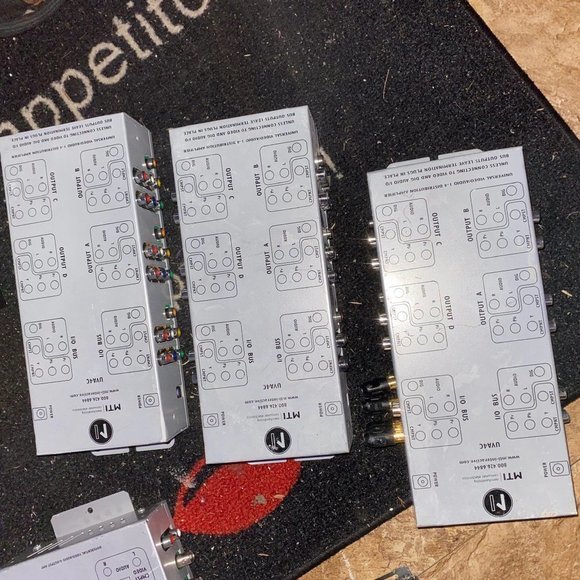

MTI Universal Video/Audio 1-4 Distribution Amplifer Lots Of 3​

MTI Universal Video/Audio 1-4 Distribution Amplifier Lots Of 3 The UVA4C is a unity gain 1 to 4 distribution amplifier with composite video, component video, stereo audio, and digital audio ports. The source signals are connected to a passive I/O Bus. A second I/O Bus port is available for cascading of multiple units. Power: 12VAC, 400mA Video: Composite, Component Input Impedance: External 75 ohm terminator Output A-D Gain: 1.05 V/V Output Impedance: 75 ohm Audio: stereo, digital Input Impedance: 10k ohm Gain: 2.1 V/V Output impedance: 1k ohm Physical Specifications: 2 Composite video/stereo audio I/O Bus: RCA type jack (Yellow, White, Red) 2 Component video I/O Bus: RCA type jack (Green, Blue, Red) 2 Coaxial digital audio I/O Bus: RCA type jack (Orange) 4 Composite video/stereo audio Output A-D: RCA type jack (Yellow, White, Red) 4 Component video Output A-D: RCA type jack (Green, Blue, Red) 4 Coaxial digital audio Output A-D: RCA type jack (Orange) 2 Coaxial power jacks, 2.5mm Physical Specifications: 2 Composite video/stereo audio I/O Bus: RCA type jack (Yellow, White, Red) 2 Component video I/O Bus: RCA type jack (Green, Blue, Red) 2 Coaxial digital audio I/O Bus: RCA type jack (Orange) 4 Composite video/stereo audio
